HoWin provides a comprehensive selection of blowout preventers (BOPs) and BOP stacks, including annular BOPs with spherical and conical rubber cores and ram BOPs with U-type, UM-type, and S-type cavity structures. These BOPs are designed for use in oil, gas, geothermal drilling, well intervention, and underbalanced drilling, ensuring robust well control and safety.

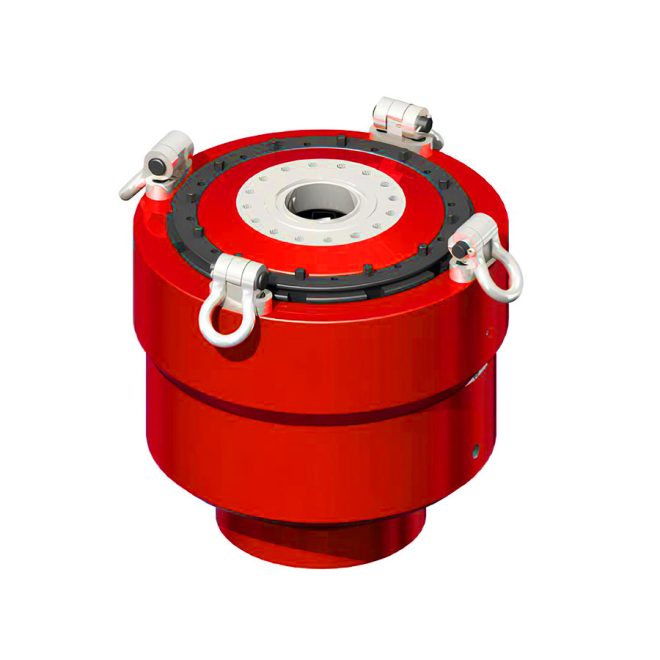

Annular BOPs:
Spherical Rubber Core: Simple structure, easy disassembly, and reliable sealing.
Conical Rubber Core: Only the piston and conical rubber core are moving parts, reducing wear and extending the lifespan.

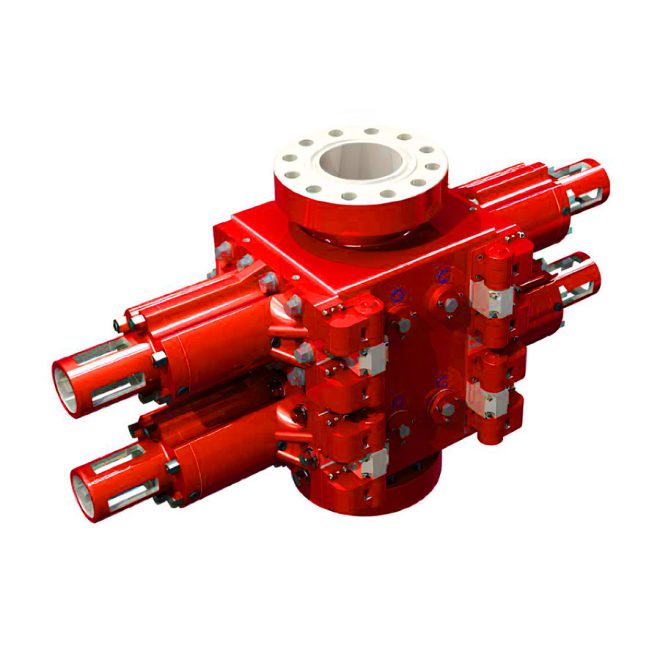

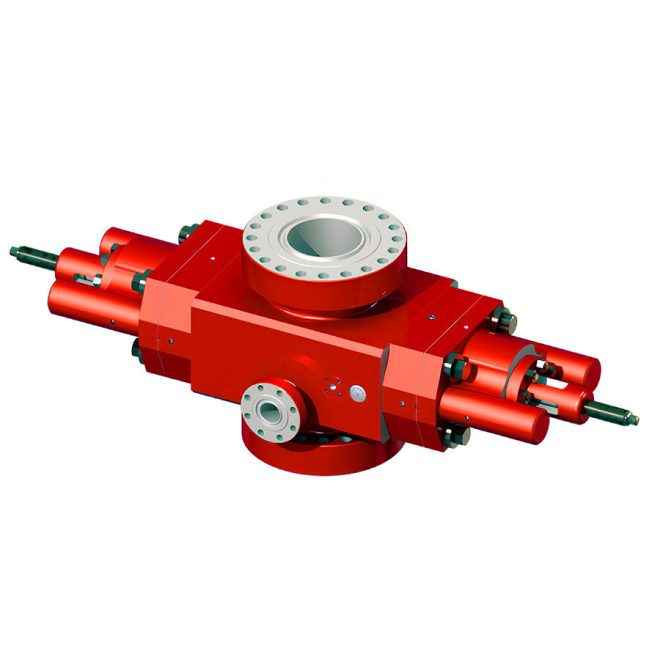

Ram BOPs:
U-Type: Long oval-shaped body to reduce stress concentration, easy ram replacement, compact size, suitable for forging and cladding products.
UM-Type: Hydraulic side-door opening, long oval-shaped body, interchangeable shear and regular cavities, easy maintenance, long service life.
S-Type: Integral casting body, easy machining, hinged side-door opening, ram chamber with arc and guide ribs to prevent jamming, flat top seal for easy maintenance, cost-effective.
Nominal Diameter: 2 9/16” ~ 7 1/16”
Pressure Rating: 2000psi ~ 20,000psi
| Nominal Diameter (in) | Working Pressure (psi) | Ram BOP (S-Type) | Ram BOP (U-Type) | Ram BOP (UM-Type) | Annular BOP (Spherical Rubber Core) | Annular BOP (Conical Rubber Core) |
|---|---|---|---|---|---|---|
| 2 9/16 | 3000 | ✔ | ✔ | |||
| 5000 | ✔ | |||||
| 3 1/16 | 3000 | ✔ | ✔ | |||
| 5000 | ✔ | |||||
| 6000 | ✔ | |||||
| 10,000 | ✔ | |||||
| 5 1/2 | 3000 | ✔ | ||||
| 5000 | ✔ | |||||
| 6 1/2 | 2000 | ✔ | ||||
| 3000 | ✔ | |||||
| 5000 | ✔ | ✔ | ||||
| 7 1/16 | 2000 | ✔ | ✔ | |||
| 3000 | ✔ | ✔ | ✔ | ✔ | ||
| 5000 | ✔ | ✔ | ✔ | ✔ | ||
| 10,000 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 15,000 | ✔ | ✔ | ||||
| 20,000 | ✔ |
Nominal Diameter: 9” ~ 30”
Pressure Rating: 500psi ~ 20,000psi
| Nominal Diameter (in) | Working Pressure (psi) | Ram BOP (S-Type) | Ram BOP (U-Type) | Ram BOP (UM-Type) | Annular BOP (Spherical Rubber Core) | Annular BOP (Conical Rubber Core) |
|---|---|---|---|---|---|---|
| 9 | 3000 | ✔ | ✔ | ✔ | ||
| 5000 | ✔ | ✔ | ✔ | |||
| 10,000 | ✔ | |||||
| 11 | 3000 | ✔ | ✔ | ✔ | ✔ | |
| 5000 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 10,000 | ✔ | ✔ | ✔ | ✔ | ||
| 15,000 | ✔ | ✔ | ||||
| 20,000 | ✔ | |||||
| 13 5/8 | 2000 | ✔ | ||||
| 3000 | ✔ | ✔ | ✔ | |||
| 5000 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 10,000 | ✔ | ✔ | ✔ | ✔ | ||
| 15,000 | ✔ | ✔ | ||||
| 16 3/4 | 3000 | ✔ | ✔ | |||
| 5000 | ✔ | ✔ | ✔ | |||
| 10,000 | ✔ | |||||
| 18 3/4 | 5000 | ✔ | ✔ | |||
| 20 3/4 | 3000 | ✔ | ✔ | |||
| 21 1/4 | 2000 | ✔ | ✔ | ✔ | ||
| 5000 | ✔ | ✔ | ✔ | |||
| 10,000 | ✔ | |||||
| 29 1/2 | 500 | ✔ |
