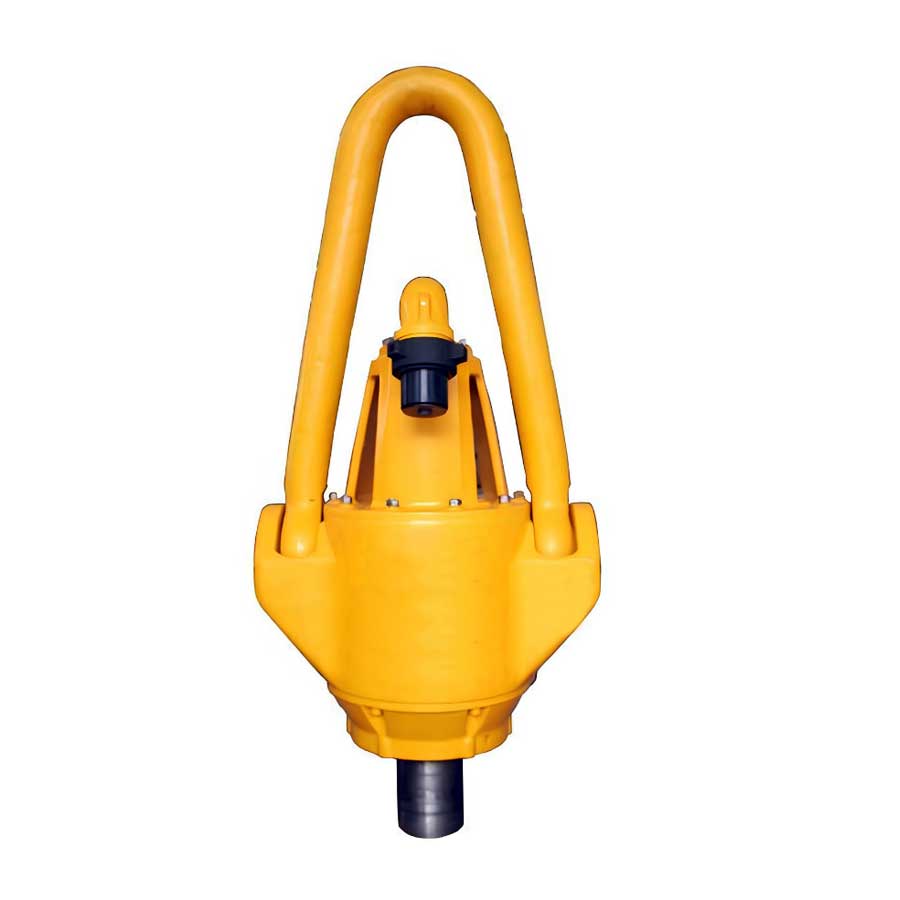

    Drilling Swivel-1Drilling Swivel-2

    Drilling Swivel

    We offer two types of drilling swivels: rotary swivels and power swivels. These are essential components in drilling systems, providing rotational power and allowing drilling fluid passage.


    Application

    Oil and Gas Drilling

    Types

    Rotary swivel & Power swivel


    The rotary swivel is a critical component in the drilling system. It provides the necessary rotational power for the drill string while allowing drilling fluid to pass through. It is typically connected at the top of the drilling rig, linking the drilling pump and drill pipe. Our rotary swivels are designed and manufactured according to API Spec 8C, ensuring reliable performance and compliance with industry standards.


    The power swivel provides rotational power on the workover rig mast. It is used for milling, grinding, drilling cement plugs and bridge plugs, fishing, window sidetracking, drilling open-hole wells, and coring. Designed and manufactured to API 8C standards, the power swivel offers robust performance for various drilling and workover operations.


    Rotary Swivel Models and Specifications

    ModelSL110SL135SL170SL225SL315
    Max. Static Load1100 kN / 120 US ton1350 kN / 150 US ton1700 kN / 200 US ton2250 kN / 250 US ton3150 kN / 350 US ton
    Dynamic Load Rating600 kN / 65 US ton1000 kN / 110 US ton1300 kN / 140 US ton1600 kN / 175 US ton2100 kN / 230 US ton
    Max. Speed300 rpm300 rpm300 rpm300 rpm300 rpm
    Max. Pressure35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi
    Gooseneck Connection3LP4LP4LP4LP4LP
    Sub Connection4 1/2 REG-1H6 5/8 REG-1H6 5/8 REG-1H6 5/8 REG-1H6 5/8 REG-1H
    Size1610x635x636 mm1890x660x780 mm2060x820x822 mm2290x1010x957 mm2418x1056x1041 mm

    		63.5×24.8×25 in74.4x26x30.7 in81.1×32.3×32.4 in90.4×39.8×37.7 in95.2×41.6×41 in
    Weight400 kg / 880 lb1500 kg / 3307 lb1700 kg / 3748 lb2600 kg / 5732 lb3000 kg / 6614 lb
    Applicable Spinner Model–XSL135XSL170XSL225XSL315
    Spinner Size–2326x660x780 mm2490x820x822 mm2743x1010x957 mm2873x1026x897 mm

    		–91.6x26x30.7 in97.6×32.3×32.4 in108×39.8×37.7 in113×41.6×41 in

    ModelSL450SL450ALBC200LD300SL585
    Max. Static Load4500 kN / 500 US ton4500 kN / 500 US ton1700 kN / 200 US ton2600 kN / 300 US ton5850 kN / 650 US ton
    Dynamic Load Rating3200 kN / 350 US ton3200 kN / 350 US ton1300 kN / 140 US ton1500 kN / 165 US ton4100 kN / 450 US ton
    Max. Speed300 rpm300 rpm92 rpm300 rpm300 rpm
    Max. Pressure35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi
    Gooseneck Connection4LP4LP4LP4LP4LP
    Sub Connection6 5/8 REG-1H6 5/8 REG-1H6 5/8 REG-1H5 1/2 REG-1H6 5/8 REG-1H
    Size2570x1096x1012 mm3015x1096x1000 mm2060x820x822 mm2329x929x707 mm3115x1224x990 mm

    		101.2×43.1×39.8 in119x43x39.5 in81.1×32.3×32.4 in91.7×36.5×27.8 in122x48x39 in
    Weight3400 kg / 7496 lb3400 kg / 7496 lb1700 kg / 3748 lb2400 kg / 5290 lb3430 kg / 7560 lb
    Applicable Spinner ModelXSL450SL450AXLBC200––
    Spinner Size3025x1096x1012 mm3015x1096x1000 mm2480x820x822 mm––

    		119x43x39.8 in119x43x39.5 in97.6×32.3×32.4 in––


    Power Swivel Models and Specifications

    ModelDSL85DSL110DSL135DXQ110
    Max. Static Load850 kN / 94 US ton1100 kN / 120 US ton1350 kN / 150 US ton1100 kN / 120 US ton
    Dynamic Load Rating450 kN / 50 US ton600 kN / 65 US ton934 kN / 103 US ton600 kN / 65 US ton
    Max. Speed155 rpm150 rpm160 rpm150 rpm
    Max. Pressure34.5 MPa / 5000 psi34.5 MPa / 5000 psi34.5 MPa / 5000 psi34.5 MPa / 5000 psi
    Max. Torque5400 N·m / 3980 ft·lbf11000 N·m / 8100 ft·lbf15730 N·m / 11600 ft·lbf11000 N·m / 8100 ft·lbf
    Bore Thru Stem50.8 mm / 2 in68.3 mm / 2.7 in58 mm / 2.3 in68.3 mm / 2.3 in
    Gooseneck Connection2-1/2LP3LP3LP3LP
    Stem ConnectionIF2-7/8 (NC31)IF3-1/2 (NC38)IF3-1/2 (NC38)IF3-1/2 (NC38)
    Auxiliary Functions–––Tilt, Back Wrench
    Size5050 x 2000 x 2090 mm / 199 x 79 x 82 in5300 x 2100 x 2000 mm / 209 x 83 x 79 in5300 x 2100 x 2000 mm / 209 x 83 x 79 in5300 x 2100 x 2200 mm/ 209 x 83 x 87 in
    weight5400 kg / 11900 lb6950 kg / 15320 lb7570 kg / 16690 lb7250 kg / 15980 lb


    Product Details▼

    The rotary swivel is a critical component in the drilling system. It provides the necessary rotational power for the drill string while allowing drilling fluid to pass through. It is typically connected at the top of the drilling rig, linking the drilling pump and drill pipe. Our rotary swivels are designed and manufactured according to API Spec 8C, ensuring reliable performance and compliance with industry standards.


    The power swivel provides rotational power on the workover rig mast. It is used for milling, grinding, drilling cement plugs and bridge plugs, fishing, window sidetracking, drilling open-hole wells, and coring. Designed and manufactured to API 8C standards, the power swivel offers robust performance for various drilling and workover operations.


    Rotary Swivel Models and Specifications

    ModelSL110SL135SL170SL225SL315
    Max. Static Load1100 kN / 120 US ton1350 kN / 150 US ton1700 kN / 200 US ton2250 kN / 250 US ton3150 kN / 350 US ton
    Dynamic Load Rating600 kN / 65 US ton1000 kN / 110 US ton1300 kN / 140 US ton1600 kN / 175 US ton2100 kN / 230 US ton
    Max. Speed300 rpm300 rpm300 rpm300 rpm300 rpm
    Max. Pressure35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi
    Gooseneck Connection3LP4LP4LP4LP4LP
    Sub Connection4 1/2 REG-1H6 5/8 REG-1H6 5/8 REG-1H6 5/8 REG-1H6 5/8 REG-1H
    Size1610x635x636 mm1890x660x780 mm2060x820x822 mm2290x1010x957 mm2418x1056x1041 mm

    		63.5×24.8×25 in74.4x26x30.7 in81.1×32.3×32.4 in90.4×39.8×37.7 in95.2×41.6×41 in
    Weight400 kg / 880 lb1500 kg / 3307 lb1700 kg / 3748 lb2600 kg / 5732 lb3000 kg / 6614 lb
    Applicable Spinner Model–XSL135XSL170XSL225XSL315
    Spinner Size–2326x660x780 mm2490x820x822 mm2743x1010x957 mm2873x1026x897 mm

    		–91.6x26x30.7 in97.6×32.3×32.4 in108×39.8×37.7 in113×41.6×41 in

    ModelSL450SL450ALBC200LD300SL585
    Max. Static Load4500 kN / 500 US ton4500 kN / 500 US ton1700 kN / 200 US ton2600 kN / 300 US ton5850 kN / 650 US ton
    Dynamic Load Rating3200 kN / 350 US ton3200 kN / 350 US ton1300 kN / 140 US ton1500 kN / 165 US ton4100 kN / 450 US ton
    Max. Speed300 rpm300 rpm92 rpm300 rpm300 rpm
    Max. Pressure35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi35 MPa / 5000 psi
    Gooseneck Connection4LP4LP4LP4LP4LP
    Sub Connection6 5/8 REG-1H6 5/8 REG-1H6 5/8 REG-1H5 1/2 REG-1H6 5/8 REG-1H
    Size2570x1096x1012 mm3015x1096x1000 mm2060x820x822 mm2329x929x707 mm3115x1224x990 mm

    		101.2×43.1×39.8 in119x43x39.5 in81.1×32.3×32.4 in91.7×36.5×27.8 in122x48x39 in
    Weight3400 kg / 7496 lb3400 kg / 7496 lb1700 kg / 3748 lb2400 kg / 5290 lb3430 kg / 7560 lb
    Applicable Spinner ModelXSL450SL450AXLBC200––
    Spinner Size3025x1096x1012 mm3015x1096x1000 mm2480x820x822 mm––

    		119x43x39.8 in119x43x39.5 in97.6×32.3×32.4 in––


    Power Swivel Models and Specifications

    ModelDSL85DSL110DSL135DXQ110
    Max. Static Load850 kN / 94 US ton1100 kN / 120 US ton1350 kN / 150 US ton1100 kN / 120 US ton
    Dynamic Load Rating450 kN / 50 US ton600 kN / 65 US ton934 kN / 103 US ton600 kN / 65 US ton
    Max. Speed155 rpm150 rpm160 rpm150 rpm
    Max. Pressure34.5 MPa / 5000 psi34.5 MPa / 5000 psi34.5 MPa / 5000 psi34.5 MPa / 5000 psi
    Max. Torque5400 N·m / 3980 ft·lbf11000 N·m / 8100 ft·lbf15730 N·m / 11600 ft·lbf11000 N·m / 8100 ft·lbf
    Bore Thru Stem50.8 mm / 2 in68.3 mm / 2.7 in58 mm / 2.3 in68.3 mm / 2.3 in
    Gooseneck Connection2-1/2LP3LP3LP3LP
    Stem ConnectionIF2-7/8 (NC31)IF3-1/2 (NC38)IF3-1/2 (NC38)IF3-1/2 (NC38)
    Auxiliary Functions–––Tilt, Back Wrench
    Size5050 x 2000 x 2090 mm / 199 x 79 x 82 in5300 x 2100 x 2000 mm / 209 x 83 x 79 in5300 x 2100 x 2000 mm / 209 x 83 x 79 in5300 x 2100 x 2200 mm/ 209 x 83 x 87 in
    weight5400 kg / 11900 lb6950 kg / 15320 lb7570 kg / 16690 lb7250 kg / 15980 lb
