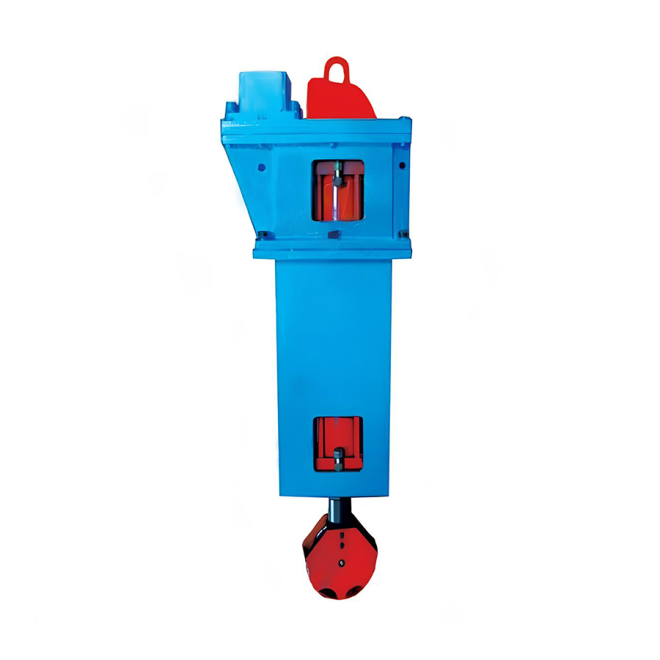

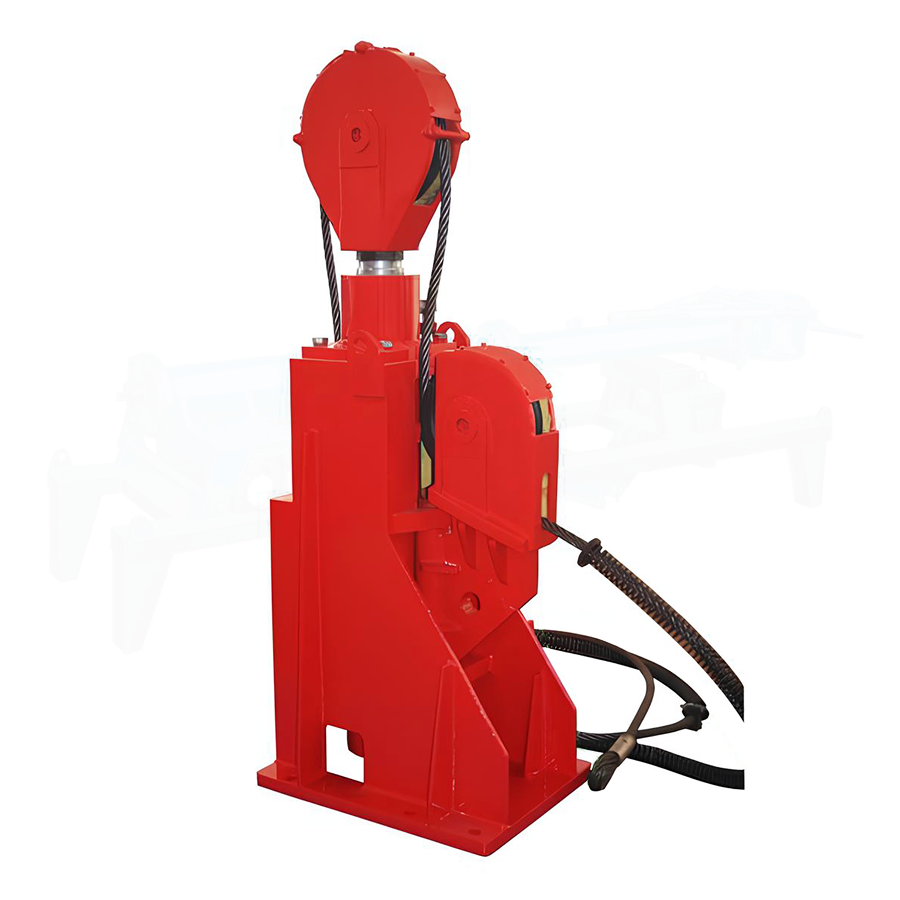

    Hydraulic Cathead

    Our hydraulic catheads, used in conjunction with elevators, are designed for tightening and loosening connections in oil drilling operations. It features adjustable pulling force and smooth operation. Available in various models with pulling capacities of 5t, 8t, 10t, and 16t.


    Application

    Oil, gas and geothermal drilling


    The hydraulic cathead is an essential tool in oil drilling operations, used alongside elevators to tighten and loosen connections. This device offers smooth operation and adjustable pulling force, ensuring efficient and safe drilling activities. The hydraulic cathead is available in a series of models categorized by their pulling capacities: 5t, 8t, 10t, and 16t. Each model is designed to meet different operational requirements, providing versatility and reliability in various drilling scenarios.


    Specifications Table

    ModelYM-5YM-8YM-10YM-10LXYM-10CYM-10ZYM-16YM-16LXYM-16CYM-16Z
    Pressure Rating16 MPa / 2320 psi16 MPa / 2320 psi16 MPa / 2320 psi16 MPa / 2320 psi16.6 MPa / 2400 psi16.6 MPa / 2400 psi16 MPa / 2320 psi16 MPa / 2320 psi16.6 MPa / 2400 psi16.6 MPa / 2400 psi
    Flow Rating120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm
    Nominal Stroke1700 mm / 67 in1400 mm / 55 in1650 mm / 65 in1650 mm / 65 in1500 mm / 59 in1500 mm / 59 in1620 mm / 64 in1620 mm / 64 in1500 mm / 59 in1500 mm / 59 in
    Pull Rating50 kN / 5.5 US ton80 kN / 8.8 US ton100 kN / 11 US ton100 kN / 11 US ton100 kN / 11 US ton100 kN / 11 US ton160 kN / 17.6 US ton160 kN / 17.6 US ton160 kN / 17.6 US ton160 kN / 17.6 US ton
    Wire Rope Diameter16 mm / 5/8 in20 mm / 3/4 in22 mm / 7/8 in22 mm / 7/8 in20 mm / 3/4 in20 mm / 3/4 in24 mm / 15/16 in24 mm / 15/16 in26 mm / 11/32 in26 mm / 11/32 in
    Size (L×W×H)2232×1172×650 mm / 88×46×26 in2280×1280×650 mm / 90×50×26 in2342×1280×650 mm / 92×50×26 in1973×710×430 mm / 76×28×17 in2137×725×260 mm / 91×29×10 in1588×600×520 mm / 63×24×20 in2450×1590×650 mm / 96×63×26 in2025×700×430 mm / 80×28×17 in2314×740×400 mm / 91×29×16 in1592×650×520 mm / 63×26×21 in
    Weight288 kg / 635 lb305 kg / 673 lb345 kg / 761 lb530 kg / 1168 lb360 kg / 794 lb450 kg / 993 lb420 kg / 926 lb760 kg / 1676 lb400 kg / 882 lb520 kg / 1146 lb


    Product Details▼

    The hydraulic cathead is an essential tool in oil drilling operations, used alongside elevators to tighten and loosen connections. This device offers smooth operation and adjustable pulling force, ensuring efficient and safe drilling activities. The hydraulic cathead is available in a series of models categorized by their pulling capacities: 5t, 8t, 10t, and 16t. Each model is designed to meet different operational requirements, providing versatility and reliability in various drilling scenarios.


    Specifications Table

    ModelYM-5YM-8YM-10YM-10LXYM-10CYM-10ZYM-16YM-16LXYM-16CYM-16Z
    Pressure Rating16 MPa / 2320 psi16 MPa / 2320 psi16 MPa / 2320 psi16 MPa / 2320 psi16.6 MPa / 2400 psi16.6 MPa / 2400 psi16 MPa / 2320 psi16 MPa / 2320 psi16.6 MPa / 2400 psi16.6 MPa / 2400 psi
    Flow Rating120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm120 L/min / 31.7 gpm
    Nominal Stroke1700 mm / 67 in1400 mm / 55 in1650 mm / 65 in1650 mm / 65 in1500 mm / 59 in1500 mm / 59 in1620 mm / 64 in1620 mm / 64 in1500 mm / 59 in1500 mm / 59 in
    Pull Rating50 kN / 5.5 US ton80 kN / 8.8 US ton100 kN / 11 US ton100 kN / 11 US ton100 kN / 11 US ton100 kN / 11 US ton160 kN / 17.6 US ton160 kN / 17.6 US ton160 kN / 17.6 US ton160 kN / 17.6 US ton
    Wire Rope Diameter16 mm / 5/8 in20 mm / 3/4 in22 mm / 7/8 in22 mm / 7/8 in20 mm / 3/4 in20 mm / 3/4 in24 mm / 15/16 in24 mm / 15/16 in26 mm / 11/32 in26 mm / 11/32 in
    Size (L×W×H)2232×1172×650 mm / 88×46×26 in2280×1280×650 mm / 90×50×26 in2342×1280×650 mm / 92×50×26 in1973×710×430 mm / 76×28×17 in2137×725×260 mm / 91×29×10 in1588×600×520 mm / 63×24×20 in2450×1590×650 mm / 96×63×26 in2025×700×430 mm / 80×28×17 in2314×740×400 mm / 91×29×16 in1592×650×520 mm / 63×26×21 in
    Weight288 kg / 635 lb305 kg / 673 lb345 kg / 761 lb530 kg / 1168 lb360 kg / 794 lb450 kg / 993 lb420 kg / 926 lb760 kg / 1676 lb400 kg / 882 lb520 kg / 1146 lb
