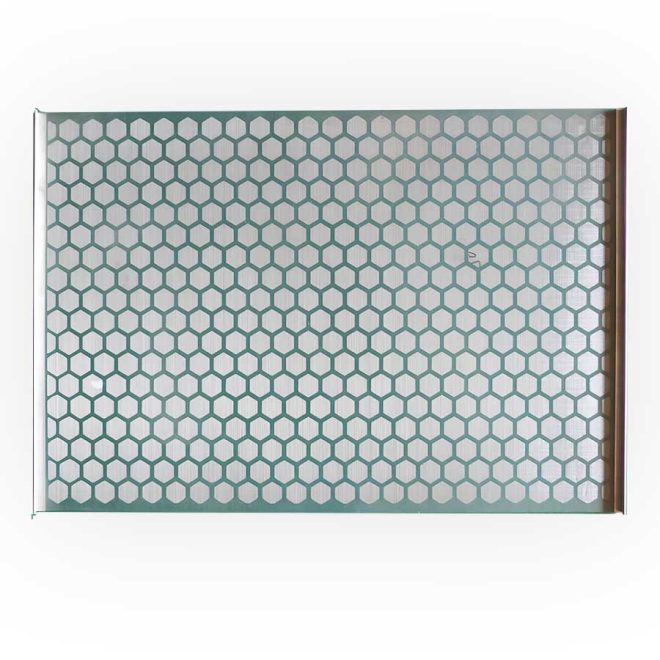

The hook strip flat screen is a high-performance shale shaker screen designed for oil and gas drilling operations. Engineered with wear-resistant, corrosion-resistant, and high-temperature-resistant materials, this screen ensures superior filtration efficiency and an extended service life. With a reinforced iron plate backing and a multi-layer stainless steel mesh, it delivers optimal drilling fluid recovery while reducing operational costs.
| Feature | Details |
| API Certification | API RP 13C Compliant |
| Mesh Range | Drag net 10-40 mesh, Screen mesh 20-250 mesh |
| Iron Plate Thickness | 1mm – 3mm |
| Iron Plate Dimensions | Width: 500mm – 1290mm, Length: 650mm – 2000mm |
| Iron Plate Hole Shapes | Hexagonal, Rectangular, Square |
| Back Paint Color | Customizable based on client requirements |
| Materials | Stainless steel mesh, Iron plate, Galvanized plate |
| Durability | Wear-resistant, Corrosion-resistant, High-temperature resistant |
| Installation | Hook strip design for quick installation and replacement |
| Compatible Shakers | Derrick FLC2000 PWP, Derrick FLC500 Series PWP, GNZS, NOV Brandt, and more |
| Applications | Used in oil drilling operations for drilling fluid filtration |
| Model | Compatible Shaker Brand | Mesh Range | Dimensions (L×W) | Average Weight |
| SHF1 | Derrick FLC2000 PWP | 20—325 | 1053×697mm | 4.8KGS |
| SHF2 | Derrick FLC313M PWP | 20—325 | 846×697mm | 4.0KGS |
| SHF3 | Derrick FLC500 Series PWP | 20—325 | 1050×697mm | 6.1KGS |
