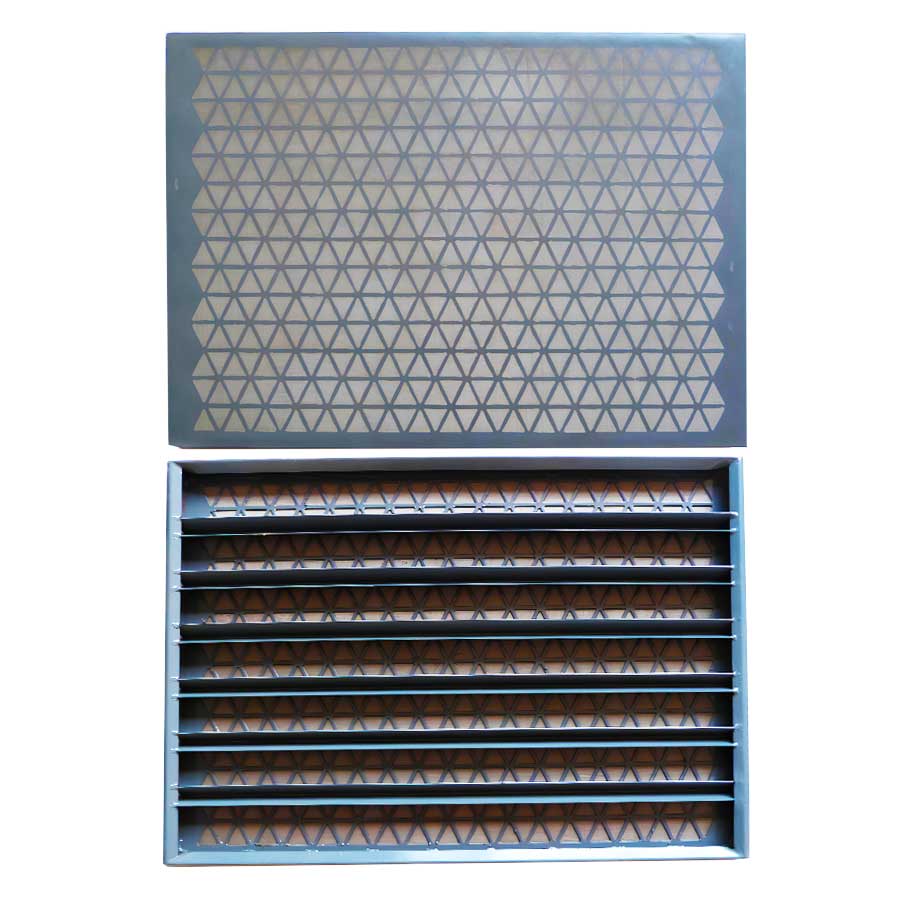

The steel frame shale shaker screen is designed for efficient solids control in oil and gas drilling, as well as mining and industrial mud separation. Constructed with 304/316 stainless steel mesh and a reinforced metal frame, it provides exceptional wear, corrosion, and high-temperature resistance. The multi-layer mesh design, combined with a perforated backing plate, enhances filtration efficiency and durability, ensuring stable performance under high loads.
| Feature | Details |
| API Certification | API RP 13C Compliant |
| Screen Layers | Two or three layers of 304/316 stainless steel mesh |
| Mesh Range | Drag net: 10-40 mesh, Screen mesh: 20-250 mesh |
| Frame Material | Iron frame with square/flat tubing reinforcement |
| Iron Plate Thickness | 1mm – 3mm |
| Iron Plate Dimensions | Width: 560mm – 1000mm, Length: 650mm – 1350mm |
| Durability | Wear-resistant, corrosion-resistant, high-temperature resistant |
| Back Paint Color | Customizable based on client requirements |
| Compatibility | Fits Brandt BL-50, VSM300, Swaco Mongoose, Kemtron 48 Series, and more |
| Applications | Used in oil drilling operations for drilling fluid filtration |
| Model | Compatible Shaker Brand | Mesh Range | Dimensions (L×W) | Average Weight |
| SSF-1 | Brandt BL—50 | 40—325 | 1253×635mm | 13.5KGS |
| SSF-2 | Brandt VSM300 | 40—325 | 913×650mm | 12.5KGS |
| SSF-3 | Swaco Mongoose | 40—325 | 1165×585mm | 14KGS |
| SSF-4 | Kemtron 48 Series | 40—325 | 1220×720mm | 17.5KGS |
